Description

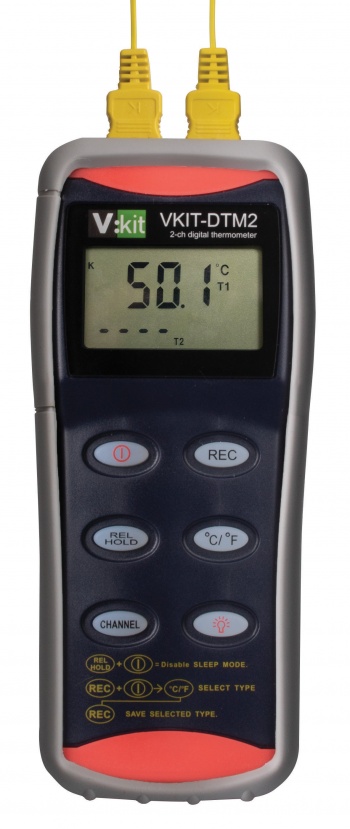

Supplied with a certificate of calibration and in a robust carry case, VKIT-DTM2 is the perfect tool for field service engineers and laboratory personnel performing OQ/PQ and other routine performance verification activities. The unit’s protective rubber boot includes a magnet (useful to attach the thermometer to metal GC oven doors) and a built-in stand.
Temperature values are displayed in units ˚C or ˚F, on a large LCD screen.
A USB port is provided for connection to a PC, enabling compliance with the data integrity demands required in GxP environments.
Using VKIT-DTM2 with the optional AutoTemp software enables automated collection and reporting of temperature values: particularly useful when measuring the multiple zones found in GC or HPLC/UPLC systems.
The DTM2 improves on the classic, proven VKIT-1531 design by adding a larger LCD display and improved connectivity via USB.
Specification
Specification:
- Range and Accuracy (Type K ) -200 to 1370°C, ± (0.1% rdg +0.7°C), -328 to 2498°F, ± (0.1% rdg +1.4°F)
- Resolution: 0.1°C (in range of -200 to 650°C)
- Multi-point calibration (0, 25, 50, 100, 250 & 400°C.) with traceable calibration certificate
- Dual TC input (will accept Type K, J, R, S, T and E)
- 2 x
VKIT-1516
Type K TC probes
- Serial output to PC (requires optional cable)
- Battery 9V, PP9 or equivalent
- Protective rubber boot including stand and magnetic holder
- Supplied with sturdy carry case
Contents
Contents:
1 x VKIT-DTM2
2 x
VKIT-1516
type K thermocouples probes
1 x Calibration Certificate
1 x Manual
1 x 9v battery
1 x Protective rubber boot
Accessories
VKIT-1514
Place in the sample compartment tray or carousel to conveniently measure temperature.
VKIT-1516
Suitable for OQ of all HPLC column ovens including Agilent column compartments, Shimadzu column ovens, Waters Acquity and Alliance column managers.
VKIT-1517
Insert through the septum to quickly measure the temperature within the inlet.
VKIT-1519
Robust and easily fitted thermocouple probe, suitable for GC Operational Qualification. New and updated design.
VKIT-1518
Insert into the transfer line of Agilent 7697 and G1888 headspace samplers to easily measure temperature during OQ.
